FELIX Pro 3 Touch Dual Extruder 3D Printer

The FELIX Pro 3 Touch is the latest addition to the Pro Series of 3D printers and builds on the success of its predecessors in terms of quality and reliability to provide professional users with an intuitive, easy-to-use manufacturing tool for every stage of their product development workflow.



Intelligent 3D printing is here.

The FELIX Pro 3 builds on the success of other additive manufacturing platforms in the Pro range by introducing industrial-grade quality and reliability at an unmatched price point.

The Pro 3 is an intuitive, intelligent and easy-to-use manufacturing tool for every stage of product development - from prototyping to production. It integrates seamlessly into the workflow of the office, workshop, lab or factory.

This 3D printer is handmade to order in our own factory in Europe. Our printers are enabled for modular upgrades in the future, ensuring an extensive lifespan.

✓ Two times faster dual head printing due to improved heat up times.

✓ Improved cooling for more detailed prints and damage-free object removal.

✓ Smarter control and monitoring with touch screen and webcam.

✓ Intelligent automated configuration for optimal ease of use.

Customer Benefits (just a few of many):

  • A world class printer manufactured and designed in Holland.
  • World renown Dutch engineering and quality
  • Upgradeable: All Felix printers have integrated modular design engineering. Example a customer can purchase an entry level model to save money (meet a budget) then easily continuously upgrade the printer with upgrades such as dual extruders, etc. No need to purchase a different model.
  • Modular engineering also provides your customer ( and you) peace of mind with easy on the spot repair capabilities. Examples:
  1. If the main board needed replacement the customer simply snaps open the door and pulls out the board, Then pops in the new board, that’s it. No need to return the printer.
  2. Need a new LCD module, just as easy unplug it, pop it off and reverse the process with the new LCD module. It just does not get any easier!
  • Open Source Materials Printing
  • Low cost Clear Felix printer enclosures.
  • Ability to print Non-Toxic Biodegradable filaments
  • Teflon type build plates for very easy print removals

Things to know about the FELIX Pro 3 Touch

  • Ready to print within minutes.Touchscreen and innovative automated calibration.

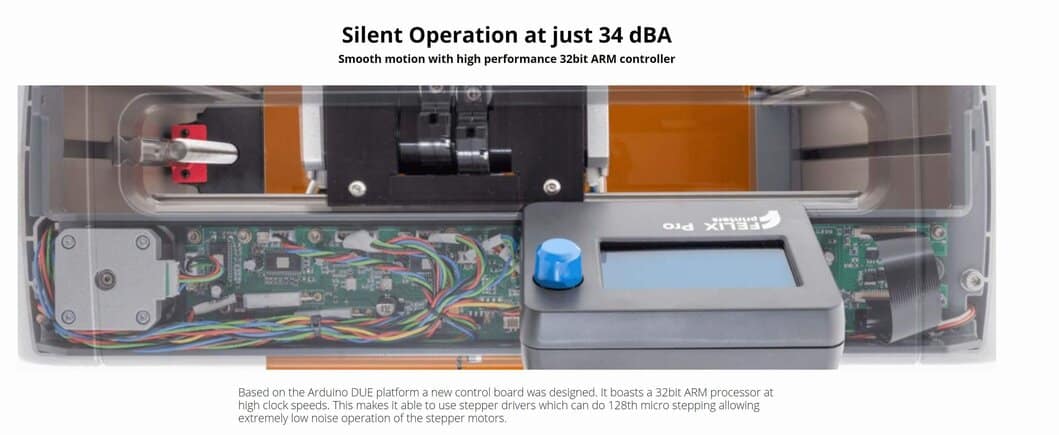

  • With just 32dB, one of most silent printers available.
  • Best in class print results.Due to unique robust, precise and open design.

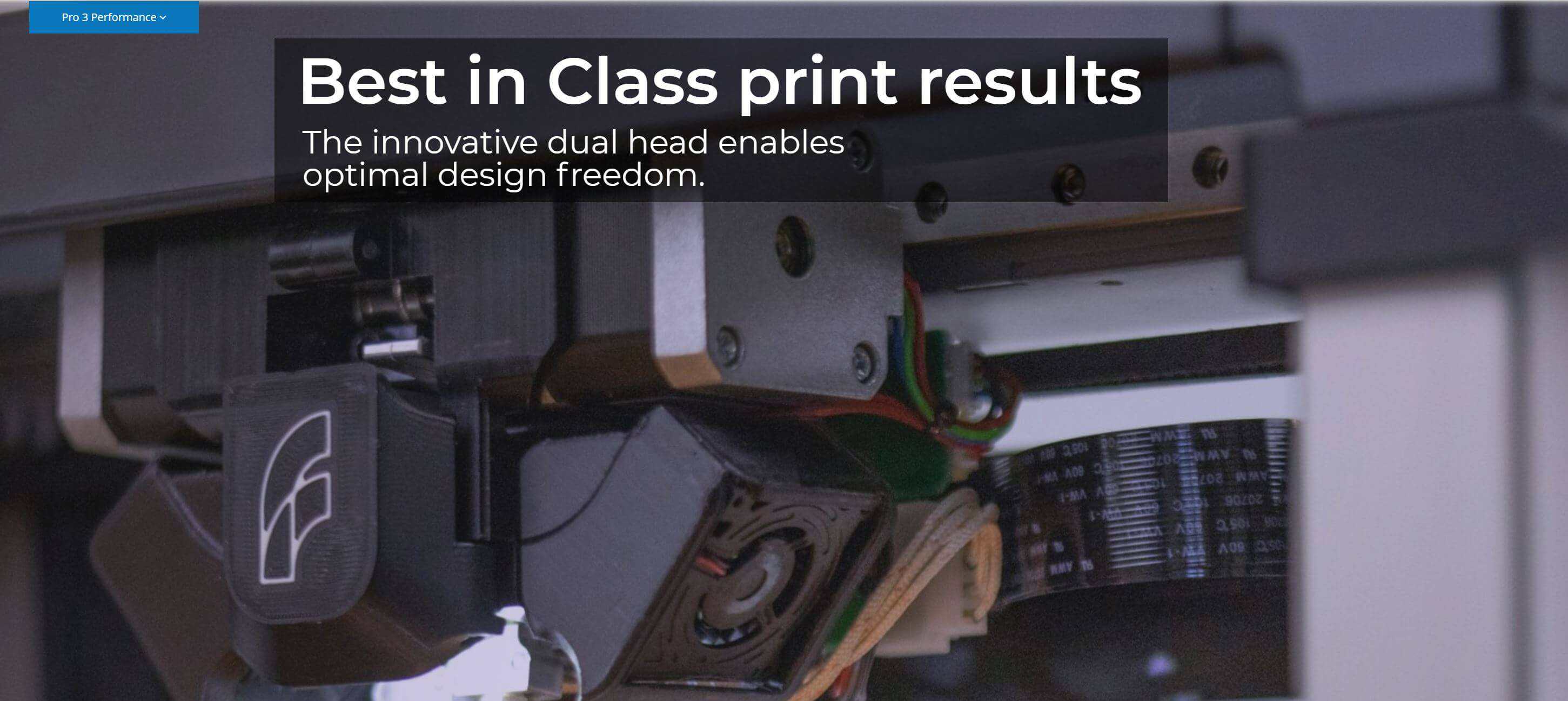

  • Innovative dual head printing system. Enables more design freedom compared to single head printing.
  • Open filament system. Print most available print materials for FDM printing.
  • Upgradable, be future proof in todays fast paced developments within FDM printing.
  • Ideal for multi-user environment, with print-server and print-file management.

The Pro 3 has been designed and manufactured to offer the highest possible price / performance ratio in its class with dedicated features that ensure minimal downtime and optimal performance as well as high quality parts.

Always Upgradeable

The design of the FELIX Pro 3 allows for the installation of future hardware upgrades with no fuss. Which means that Pro 3 users benefit from any new future developments. The ‘write off’ time of the FELIX Pro 3D printer is therefore impressively low and makes it a very cost-effective investment. The release cycles for upgrades are approximately one per year. FELIX strives to achieve the best possible performance in the most cost-effective way.

The new touchscreen with embedded print server gives the FELIX Pro 3 super powers. Enabling remote print file monitoring, multi-user environment and print-file management. Last but not least it is so powerful that it can control up to 10 different printers to create a print farm.


The new touchscreen with embedded print server gives the FELIX Pro 3 super powers. Enabling remote print file monitoring, multi-user environment and print-file management. Last but not least it is so powerful that it can control up to 10 different printers to create a print farm.

Quick-Swap Print Head:

Changing a hot end has never been so simple. Within 10 seconds you can swap a hot end! This makes print maintenance a breeze and enables you to make easy hot end changes for specific material type printing requirements. Now there is no limit to your material creativity.

Built on experience

The team behind the FELIX Pro series bring together many years of engineering and 3D printing experience with a desire to overcome the pain points that many 3D printer users have to contend with on a daily basis. The results can be found in the Pro 3 through its robust construction, automated features, ease of use, incredibly low noise emissions and print quality.

Download Specifications Data Sheet: Felix Pro 3 Specifications Datasheet

Print quality

Minimum layer height: 0.05 mm

Normal layer height: 0.15 mm

Maximum layer height: 0.25 mm

Print materials

Open source 1.75 mm filaments

Tolerance: ± 0.15

PLA, PET(G), Flex, ABS, PVA, Wood, Glass, etc.

Heated print bed

Build volume up to 237 x 244 x 235 mm (XYZ)

Bed temperature: max. 100 °C

Automatic bed levelling

Easily detachable

Connectivity

WiFi

USB-Flash Drive

USB-cable (host)

Webcam for online monitoring (optional)

Extruder

Standard nozzle: 0.35 mm

Nozzle temperature: max. 275 °C

Full metal hot-ends

Detachable (one-click)

Software

Standard: Repetier Host. Additional: Simplify3D

FELIX Pro 3 Touch box including

Felix Pro 3 Touch 3D printer, Foot with 2 bolts, Touchscreen unit, Small tool kit, Power Supply unit, AC Power supply cord, USB cable, USB Flash Drive, 2  handles for filaments (3D printed), Filament guide (3D printed), 2 Teflon tubes, QuickStart Guide

Downloads and PDF's

Felix Pro 3 Touch QuickStart Manual

Felix Pro Series User Manual

Felix Pro 3 Touch Technical Data Sheet

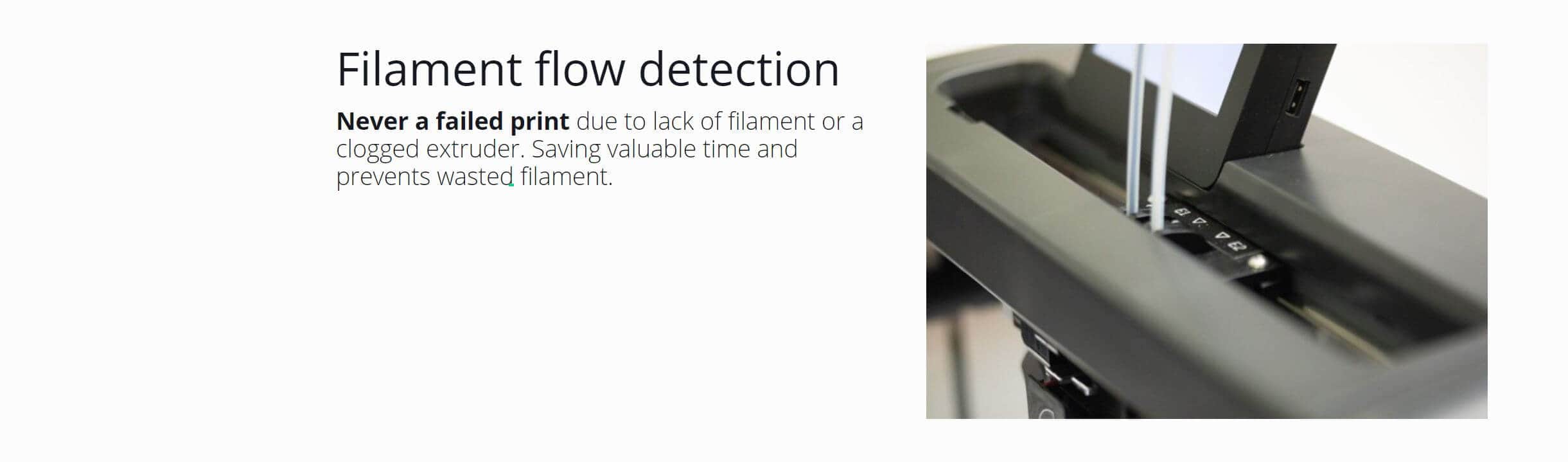

FELIX PRO 3 FILAMENT DETECTION


FELIX PRO 3 WEBCAM


FELIX PRO 3 CALIBRATION X,Y


FELIX PRO 3 BED LEVELING



FELIX PRO 3 CALIBRATION Z HEIGHT



FELIX PRO 3 DUAL HEAD PRINTING

FELIX PRO 3 EXTRUDER HIGHLIGHTS



FELIX PRO 3 FLEX PLATE PRINT REMOVAL

FELIX PRO 3 FOLDING HEATED BED

Print Management & Design with Simplify 3D:
