FELIX Tec 4.1 3D Printer

by Felix
$1,245.00
SKU 105.014.1
Why Buy From Project 3D Printers

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

 FELIX Tec 4.1 3D Printer

Providing the best tool for creators The Tec 4 is designed to give you the freedom to build what’s on your mind. At FELIX printers we wanted to create a 3D printer which gives users a tool to create, to experiment and to benefit from amazing 3D printing technologies. Closely cooperating with the FELIX community has made us understand what is desired from a 3D printer. All the knowledge and experience we have gained in the last years are now integrated into one product: the FELIX Tec 4.

Start printing within minutes

Integrated automatic levelling

One of the greatest achievements in the Tec 4, is the integration of the automatic software leveling and Bump-Map Registration. This new feature will almost guarantee a perfect first layer, which is essential for a successful print.

Build to last

The Tec 4 is ready to perform when needed thanks to the use of high quality components such as full metal print heads and industrial grade linear guides.  A high level of durability turns this FELIX into a carefree 3D printer which is build to create an endless amount of 3D prints.

Get started with a single click

Start your prints easily thanks to the user friendly interface in combination with a large LCD screen and improved control buttons.

Flexible to your needs

The all new FELIX BuildPlate is designed to achieve damage-free removal of printed objects. Once a print has finished, the BuildPlate can be lifted from the build platform. Simply bending the BuildPlate will pop off the printed object within a second.

Ultimate design freedom

Benefit from the freedom to create complex geometries with the use of water soluble support material. The two individual print heads allow you to combine different materials into one amazing 3D print. With the FELIX Tec 4 there is no need to exchange print heads when changing materials.

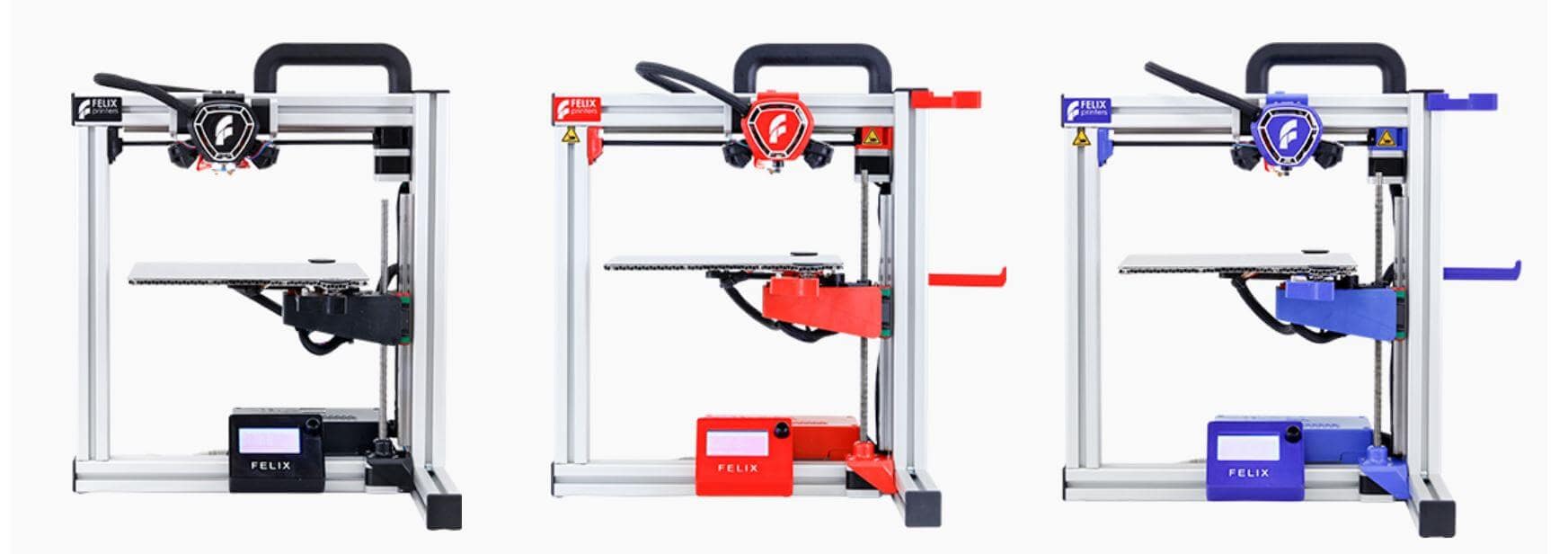

Make it personal

Configure your Tec 4 to your own needs. Select a Single or a Dual extruder and pick your own favorite color.

Specs FELIX Tec 4L 1024x724 - FELIX Tec 4.1 3D Printer



Print Size

Weight Approx. 10 kg



Build Volume

Printer and printing properties

Name of product FELIX Tec 4 Dual Head
Print Technology Fused Filament Fabrication
Layer resolution



Low 250 microns
Normal 200 microns
High 150 microns
Very High 100 microns
Extreme 50 microns



Build plate Heated platform
1 Flexible BuildPlate
Max. temperature 90 °C
Build plate leveling Semi-automatic (induction sensor)
2 manual leveling wheels
Print head 2 full metal print head (including teflon tubes)
Build speed 0.35mm nozzle upto 15 mm3/s
(ABS @ 250°C)
Print head travel speed Up to 200 mm/s
Filament feeder type Direct geared extruders
Nozzle diameter 0.35 mm standard for both nozzles (0.25, 0.5, 0.7 mm optional)
XYZ resolution XY, 13 microns
Z: 04 micron
XYZ typical print accuracy +/- 0.1mm for objects up to 100 mm
Nozzle temperatures Up to 275 °C
Nozzle heatup time Approx 1.5 min @ 200 °C
Buildplate heatup time Approx 2.5 min to 60 °C


Upgradability

Upgradable Yes, to next gen Tec Series,
FELIX Cover Unit (optional)
Expansions Paste Extruder (optional),
WiFi Unit The Element (optional)


Materials

System Open filament system, use filament from any supplier
Filament diameter 1.75mm
Supported materials Recommended: PLA, PETG, ABS,PVA, FLEX
Specials: Any filament which melts under 275 °C


Software Requirements

Software Repetier-Host for FELIXprinters, downloadable from our website (open source)
Simplify3D is recommended (not included)
Supported OS Windows 7 and upwards
Mac OS X or higher
Linux (Repetier-Host)
Supported file types STL, AMF, OBJ, 3DS
Printer communication USB
Standalone via micro SD card (included)


Hardware Requirements

Input
Line voltage 100 – 240V (AC)
Frequency 50 – 60 Hz
Power usage 250 W max.
Operating conditions
Operating ambient temperatures 15 to 32 °C
60 to 90 °F
Storage temperatures 0 to 32 °C
32 to 90 °F


Service and Support

Warranty 12 month limited warranty. (Wearable parts excluded e.g. hot-ends)
Lifetime support Expert technical support via email, phone and skype. Also our global community is available to help you.
Extended support Online support pages, our knowledgebase and clear manuals, tips and tricks to get the most out of your printer.
Safety and compliance CE declaration of conformity
Included in the box


  • FELIX Tec 4 Dual Head Assembled
  • Small tool kit
  • Starter filament set
  • AC Power supply cord
  • USB cable
  • QuickStart Guide





Felix Tec 4 Multi3D Print Flyer

 FELIX TEC 4 BED LEVELING CLIP

FELIX TEC 4 CALIBRATION X,Y

FELIX TEC 4 CALIBRATION Z PROBE

FELIX TEC 4 DUAL HEAD PRINTING

FELIX TEC 4 EXTRUDER DESIGN HIGHLIGHTS

FLEX PLATE PRINT REMOVAL
