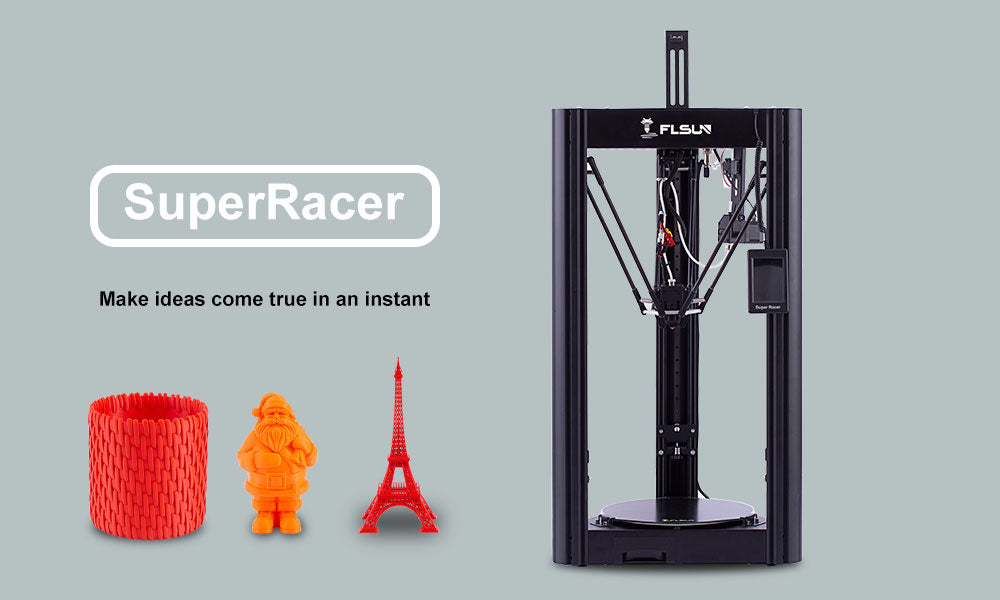

Super Racer (SR) So Fast

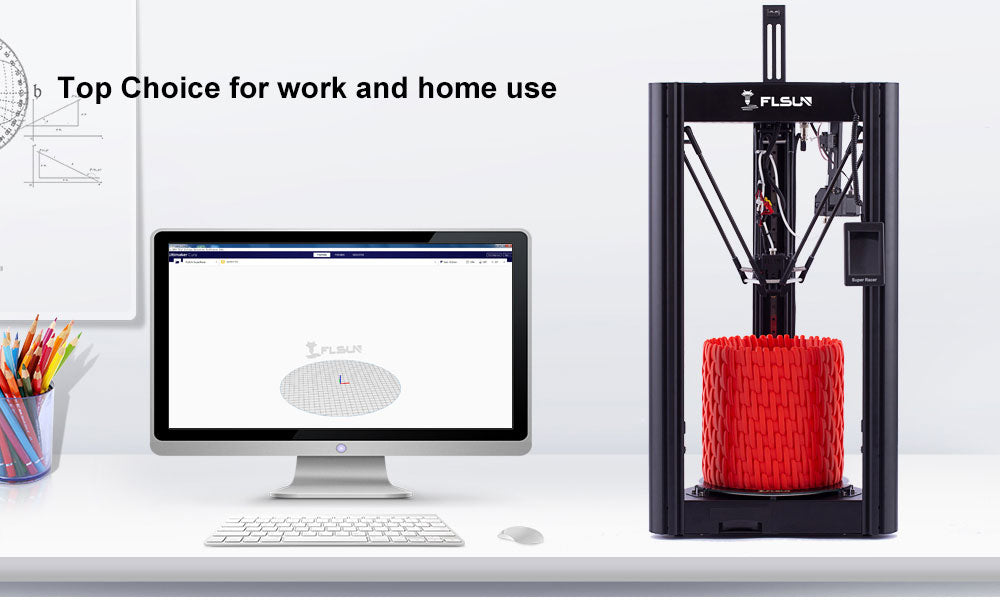

SR is the latest Delta-based 3D printer independently developed by FLSUN.

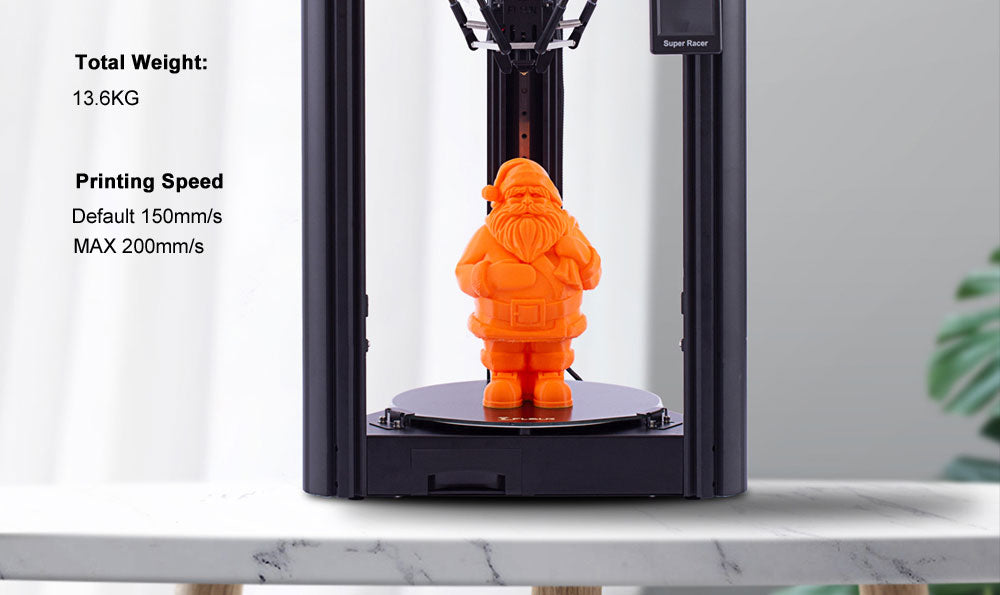

Fast printing speed is its biggest advantage. Its default printing speed is 150mm/s (about 3-4 times that of i3 architecture), and even if it runs at 200mm/s, its quality performance is good. Compared with other ordinary 3D printers, printing the same model can save about half of the printing time!


SR uses a 32-bit high-speed motherboard with four TMC 2209 installed on the motherboard. It is quieter, more stable, and has higher printing accuracy.

FLSun Super Racer Key features:

  • 150-200 mm/sec printing speed.
  • Large build volume 260x260x330 mm
  • Fast, Accurate, Powerful & User friendly
  • BMG Extruder clone
    • Dual Drive(Gear) extruder to more reliably extrude filaments and more reliable filament feeding. The unique dual feeding filament gear can minimize slippage and increase the filament feeding force to adapt to high-speed printing
    • Ensures jam-free feeding of flexible filaments
  • Volcano hot end
    • The Volcano Hotend allows you to print thicker and wider tracks, resulting in significantly shorter print times. Such a hotend also allows you to experiment with different nozzle sizes and flow rates and be more creative and exploratory in 3D printing with high melting capacity.

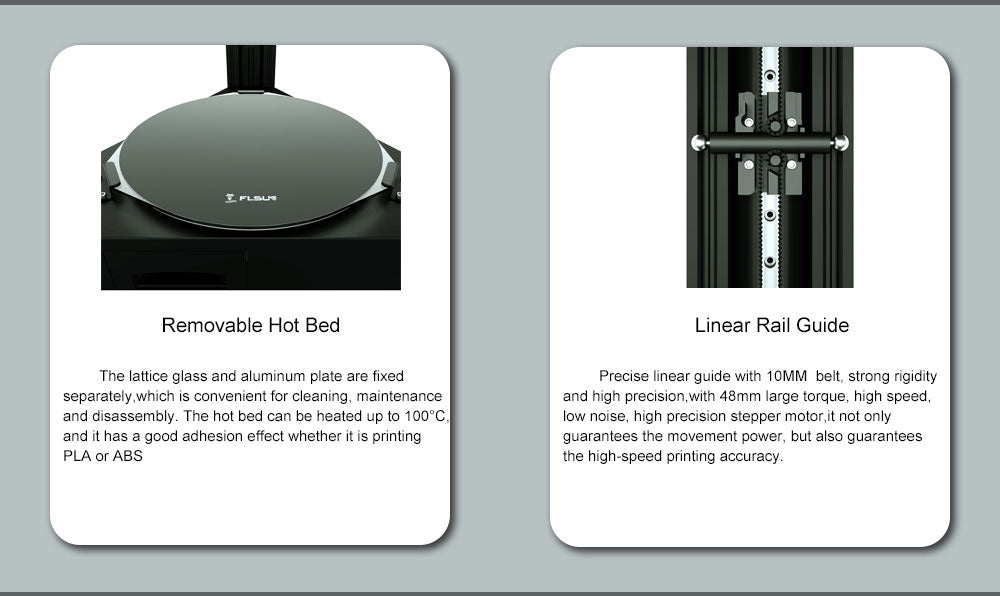

  • Heating Bed with Removable Glass Plate(Lattice)
    • The printer comes with a heating bed with two practical features—it is removable and made of tempered glass. The textured surface provides great adhesion allows you to remove models easily.
  • 32-bit motherboard with TMC 2209 driver
    • 168M high-performance 32-bit processor, higher computing speed, and with TMC2209 silent drive.
  • Linear Guide
    • High-precision linear guide, providing higher printing accuracy and stability and lower noise.Print at higher speeds while maintaining maximum print quality.
  • Removable magnetic auto-leveling sensor
    • Auto bed leveling system,  easy to start printing
  • Filament run-out sensor
  • Print recovery after power failure

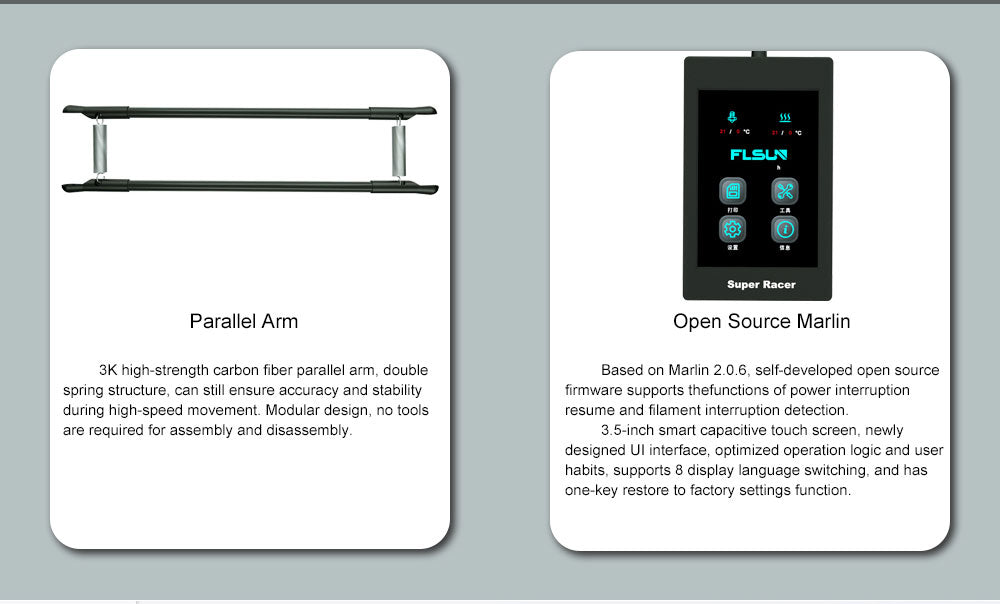

  • Carbon fiber Parallel arm
    • The high-precision 3K carbon fiber rod brings a better printing surface, and the zero-gap design makes the movement more precise and the installation easier.
  • Dual air ducts for improved cooling
  • Open source Marlin firmware
    • Based on Marlin 2.0.6. the self-developed open-source firmware supports the resume printing and filament sensor function.
  • 3.5-inch capacitive color touchscreen
    • A 3.5-inch capacitive touchscreen with a redesigned user interface and optimized operating logic with user habits supports 8 display languages. It has a function for resetting the factory settings with just one button.

FLSun Super Racer (SR) Technical specifications

Print Technology FDM/FFF
Mechanical arrangement Delta
Manufacturer FLSun
Brand FLSun
Model Super Racer (SR)

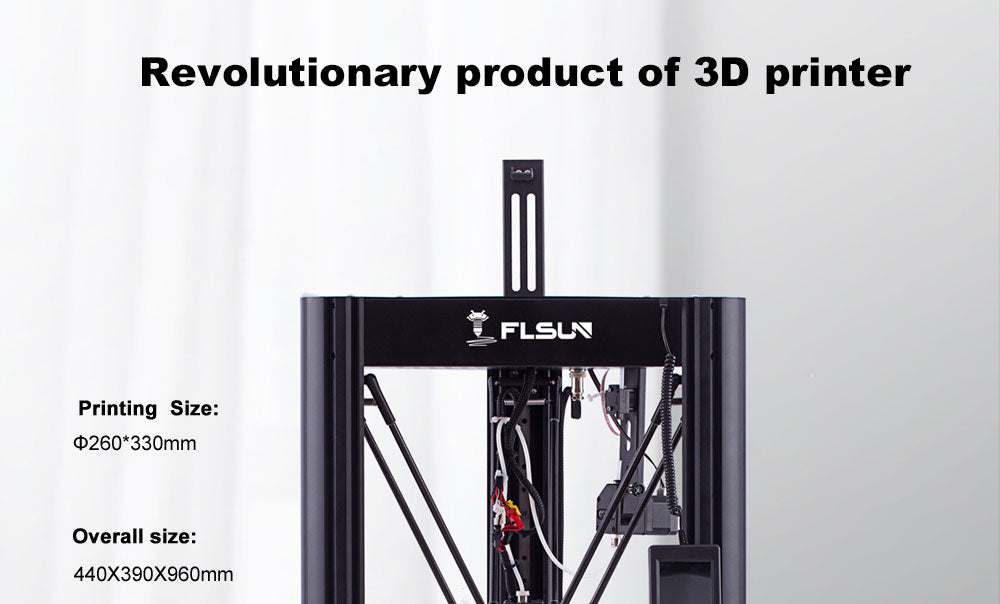

Build volume

260 x 330 mm

10.24 x 13 inches

Layer resolution 0.01-0.4mm
Print speed 150mm/s - 200mm/s(Max)
Feeder system/Extruder type Bowden BMG Extruder Clone - Dual Drive(Gear)
Print head/Nozzle type Volcano - 1
Nozzle size 0.4mm
Max. hot end temperature 240C
Nozzle heat-up time 200C in 1 minute and 35 seconds
Max. heated bed temperature 100C
Build plate heat-up time 60C in 2 minutes and 30 seconds
Print surface Lattice glass bed with Heated bed
Calibration Automatic Bed leveling system
Connectivity(Interface) USB, SD Card, USB Stick
Print recovery Yes
Filament sensor Yes
Camera No
Filament diameter 1.75mm
Third-party filament Yes
Filament materials PLA, ABS, PETG, Flexibles
Recommender slicer software Cura,Slic3r,S3D(Simplify3D),Repetier host
OS Windows, Mac OSX, Linux
File types STL,OBJ,AMF,GCODE
Power Supply

Input: AC 115 - 230V, 50 - 60Hz

Output: DC 24V, 15 A, 360W

Control board

Robin Nano v3 32bits

Ultra-quiet TMC2209 stepper drivers

Marlin Based open source firmware

Display 3.5" Capacitive Touch screen, extensible cord (700mm)
Languages 8 languages En/Fr/De/Es/Ru/Ja/Cn/Cn(Tw)
Product weight 13.5 Kg

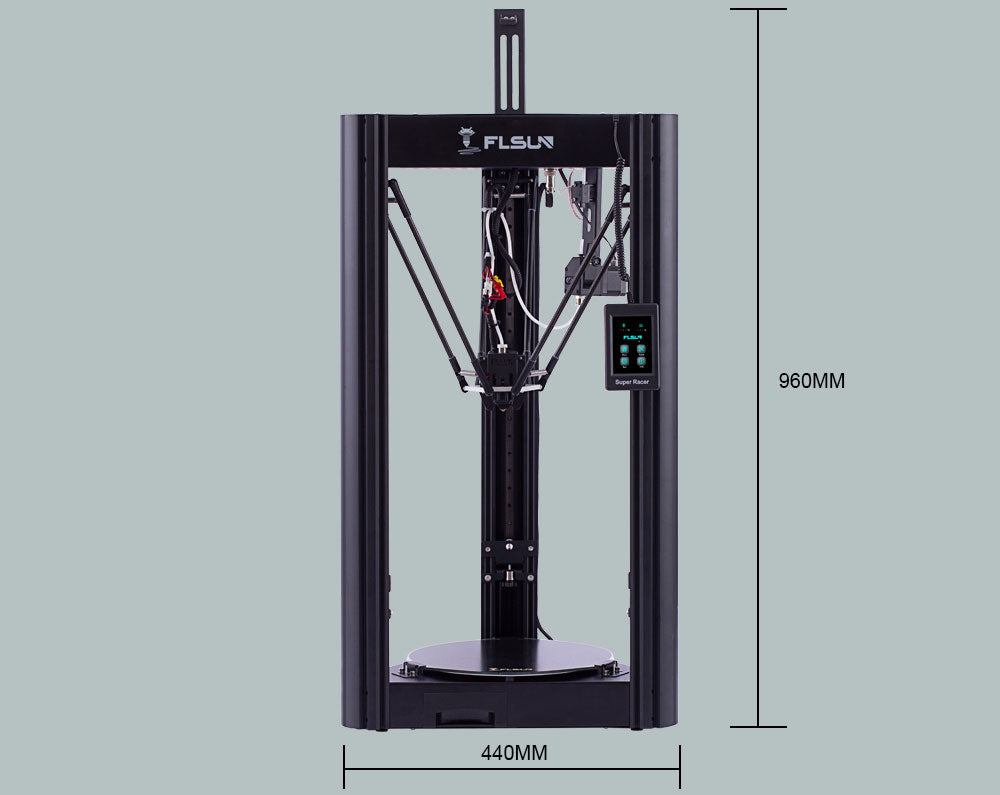

Product dimension

437x391x960mm (spool holder mounted)

17.20x15.39x37.80 Inches(Spool holder mounted)

Shipping box weight 16 Kg
Shipping box dimension

875x415x190mm

34.45x16.34x7.48 inches

Distinct features

Auto bed leveling

Volcano hot end- Dual Gear Drive

32-bit motherboard

Ultra-quiet stepper drivers

Heating bed with lattice glass plate

High Definition Digital User Interface



What's in the Box

  • 200g spool of white PLA filament
  • FLSun Super Racer (SR) User Manual
  • Spool holder
  • Clippers
  • Spare hotend (nozzle, heat block, and heat break)
  • Spare PTFE tube
  • Spare thermistor
  • Spare heater cartridge
  • Needle for nozzle clogs
  • USB Card Reader with 2GB MicroSD Card
  • Bag of screws and wires
  • Scraper
  • Hex wrenches
  • Zip ties
  • Power cable
  • USB Cable
  • Grease tube
  • Printed clips
