MD-6H Large Format Professional Industrial 3D Printer

Save 23% Save 23%
Original price $3,899.00
Original price $3,899.00 - Original price $3,899.00
Original price $3,899.00
Current price $2,999.00
$2,999.00 - $2,999.00
Current price $2,999.00
SKU MD-6H
Availability In Stock

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

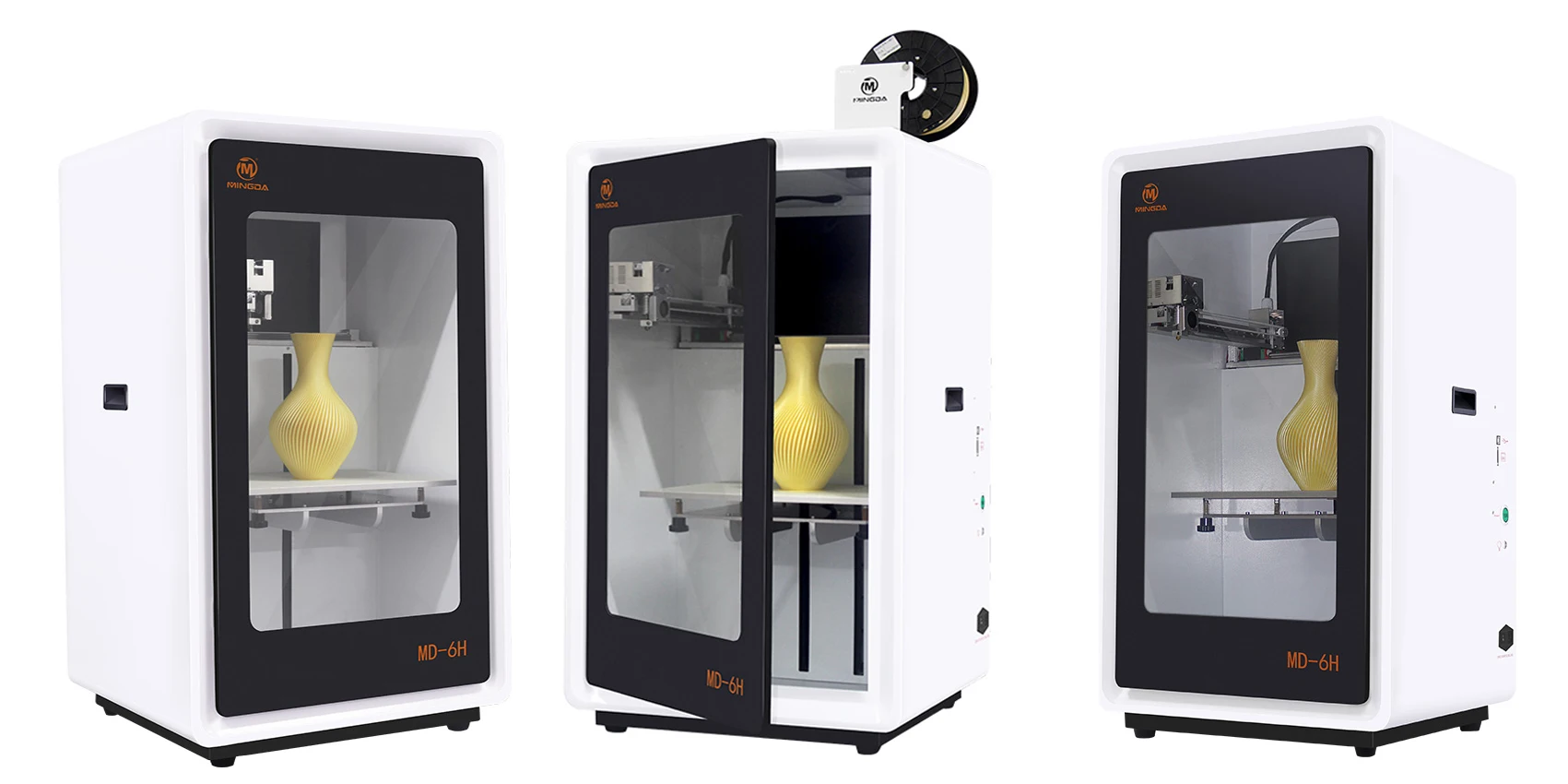

MD-6H Large Format Professional Industrial 3D Printer

400*300*500mm MINGDA 3D Printing Machine

Ships by Air or Sea from the overseas manufacturer.

Shipping Calculated at Checkout.

Features:

1)MD-6H X,Y,Z axis adopt full linear guide rails , make our 3D PRINTER machine more stable than screw structure.


2)3D printer Printing speed 0-200mm adjustable.


3)It has 5.0 inch colorful touch LCD screen, very easy to operate.


4)10mm thickness aluminum heated bed, it max temperature can heat 110 degree. Will be easy to print strong filaments like ABS and Nylon.


5)0.4mm nozzle (easily changeable) for 1.75 mm filament. Self-patent nozzle max temperature 275 degree, no blocking and drawing.


6) We accepted OEM service for wholesalers.


7) All metal stainless steel fully enclosed structure.Supports high temperature material like ABS, Nylon, etc.


8) 0.05mm layer thickness, matching with it's full enclosed structure and stable full linear guide rails, to promise best stability and precision.


9) UPS (Uninterruptible Power System), when power off, our machine will stop working and keep memory for 24 hours. Which is very important for the big size model.


10) Filament sensor, 3d printer machine will stop working if no 3D printer filament, and will work if reinsert new materials.


11) Auto Power-off, the machine can be auto power-off after finishing printing model. So, if you want to go out or do anything which take longer time, you don't worry the question of power-off.

Mingda MD-6H Product Catalog PDF

MD-6H Large Format Professional Industrial 3D Printer 400*300*500mm MINGDA 3D Printing Machine(图1)

MD-6H Large Format Professional Industrial 3D Printer 400*300*500mm MINGDA 3D Printing Machine(图2)

MD-6H Large Format Professional Industrial 3D Printer 400*300*500mm MINGDA 3D Printing Machine(图3)

MD-6H Large Format Professional Industrial 3D Printer 400*300*500mm MINGDA 3D Printing Machine(图4)

MD-6H Large Format Professional Industrial 3D Printer 400*300*500mm MINGDA 3D Printing Machine(图5)

MD-6H Large Format Professional Industrial 3D Printer 400*300*500mm MINGDA 3D Printing Machine(图6)

MD-6H Large Format Professional Industrial 3D Printer 400*300*500mm MINGDA 3D Printing Machine(图7)

MD-6H Large Format Professional Industrial 3D Printer 400*300*500mm MINGDA 3D Printing Machine(图8)

MD-6H Large Format Professional Industrial 3D Printer 400*300*500mm MINGDA 3D Printing Machine(图9)

MINGDA MD-6H 3D printer is a professional industrial grade 3D printer machine with amazing mechanical design, fully enclosed metal frame + aluminum heated bed + industrial linear guide rails on X, Y, Z axes, which make it have a strong ability to print different kinds of plastic materials, including PLA, ABS, Nylon, HIPS, PETG, ASA etc.
Below are some nice 3D printing sample made by MINGDA MD-6H industrial 3D printer.

3d metal printer.jpg
Printing Size 400*300*500mm (1mm= 0.03937inch)
Machine Dimension  550*650*1000 mm
Packing Size 690*580*1120mm
N.W/G.W 64 KG / 98 KG
Frame Material High-end Stainless Steel
Display&Controller 5.0 inch LCD touch screen
Step motor MINGDA brand 57 stepper motor gear
Heating bed 10mm thickness Alumina heating bed
File Types File Types: STL, STP, OBJ, G-Code
Supports Windows, Linux, Mac OX
Track of machine industrial grade linear guide rail on X, Y and Z axes
AC Input 95-265V, 50/60Hz
Gross Power 700W
Nozzle standard 0.4mm MINGDA patent nozzle (0.6mm, 0.8mm, 1.0mm for your choice)
Layer Thickness 0.05-0.3mm
Max Printing speed 0-200mm/s (adjustable)
Nozzle Temperature 275 degree
Platform Temperature 110 degree
Connectivity USB / SD Card (recommended by us)
Printing Materials PLA, ABS, ASA, HIPS, Nylon, Flexible/TPU, Wood, Carbon Fiber, Copper, Aluminum etc.
Language English


FAQ's

FAQ (Frequently Asked Question) of MINGDA Professional FDM 3D Printer



1. Q: What type of software can I use in MINGDA 3D printers?

A: 3D printer is only as good as the design it's given to print. And to design and format prints, you'll need the right software -- specifically design and slicing software. There are options to meet every ability level and budget, but all printers are compatible and some even require the use of proprietary software. MINGDA printers are designed for compatibility with many open-source and commercially available software. For more help in choosing the software that's right for you, see our Software Guide here.



2. Q: What type of filament is compatible with MINGDA 3D printers?

A: Some printers on the market are only compatible with proprietary filament, which is often more expensive and limiting in terms of types and colors of materials available. Knowing the cost and availability of these items up front will save you down the road. At MINGDA, we've designed our machines to work with a broad range of commercially available filaments, including PLA, ABS, TPU, HIPS, Nylon, Wood, Carbon Fiber, Copper etc.



3. Q: Do MINGDA 3D printers have a heated print bed?

A: Yes, 10mm thickness aluminum plate. One of the most critical aspects required for a great print, is the adhesion of the first layer to the printing surface. Some materials will not adhere to the surface unless it is heated to a specific temperature. MINGDA 3D printers come standard with a heated build platform. It heats evenly across the entire build plate from corner to corner, and heats up to 110 °C and higher to ensure you get excellent adhesion.



4. Q: How often will MINGDA 3D printers need to be leveled?

A: Ensuring your print bed is leveled before printing is a critical step in achieving great prints. The more your printer jostles out of alignment, the more often you need to stop to re-level your printer. We've designed our MINGDA 3D printers with true level calibration - Four Big Screws to ensure that it's easy for you to properly level and it stays level. No more fussing! According to the customer's feedbacks, it's almost no need to adjust the heated bed if using our industrial 3D printer.



5. Q: What is the MINGDA 3D printers constructed out of -- steel or acrylic?

A: Make sure you know what the printer is made of. Great prints require stability and rigidity from the machine, and that starts with the printer's frame. Frames constructed out of materials such as acrylic or light gage steel can warp or fall out of alignment, which will diminish the quality of your prints in due time. MINGDA industrial 3D printers are built out of strong stainless steel in fully enclosed structure. You can rest assured, it will stay square year-after-year.



6. Q: What are the build size of MINGDA 3D printer machines?

A: Each 3D printer has a certain build volume. The bigger the build dimensions not only means you can print bigger parts, but you can print more student's designs simultaneously. The more prints you can batch, the better! MINGDA industrial 3D printer including 1000x1000x1000mm MD-1000, 600x600x600mm MD-666, 400x300x500mm MD-6H, 300x200x200mm MD-4H, 160x160x160mm MD-16. Desktop 3D printer, 160x160x160mm MD-16. DIY 3D printer, 420x420x400mm D4, 320x310x400mm D3, 230x230x260mm D2.



7. Q: Enclosed or Open Structure of MINGDA 3D printer appearance?

A: Desktop 3D printers come in both open and enclosed designs. For most educational purposes, standard print materials such as PLA and ABS are most often used and don't require enclosures to get great prints. Enclosures become more critical when using specialty materials that require highly controlled temperatures. MINGDA focus on Industrial 3D Printer for professional usage, and also provided Desktop 3D Printers for educational usage, to make it easy to swap out nozzles, perform maintenance tasks and upgrades yourself. It also increases visibility allowing students to see the print process itself. And if you find for any reason you need an enclosure, it is not difficult to create a DIY solution.



8. Q: What are the typical maintenance costs of MINGDA 3D printer?

A:Just like any piece of machinery from a car to a computer, tune-ups are required from time-to-time to ensure the longevity of the machine. Make sure you know upfront what the typical maintenance costs look like, and if you will be able to complete any repairs or upgrades yourself. At MINGDA, we want you to have a wonderful experience with your printer for the life of the machine, and we make it easy and affordable to make upgrades and swap out parts as need be. Check out our shop to see what's available. Our support team is also available to talk through any questions you may have in the process.



9. Q: What kind of support from MINGDA is available and are there additional fees?

A: In the event that you need assistance with a repair or maintenance question, make sure you will be able to get the help you need. Check to see what the support team's typical response time is and the extent to which their services are covered under your warranty. One of MINGDA core values is providing prompt, friendly and expedient technical support. If you ever need to contact MINGDA for support, our team is staffed with the most knowledgeable and responsive Maker Gear experts.



10. Q: How can I get support from MINGDA 3D printer manufacturer?

A: MINGDA has a large sales and after-sales team. This group of MINGDA member is young, but active, powerful, responsible, professoinal and reliable. If you have any confusion or question to our products, please kindly contact with us.
