Raise3D E2

Precise, Reliable and Affordable

An easy-to-use, durable desktop 3D printer ready to improve precision standards, scale production, and add a powerful new manufacturing resource.

IDEX (Independent Dual Extruders) - Multiple Prints Simultaneously

Mirror Mode

Produce 3D models and their inverse simultaneously, increasing productivity and reducing print time.

Duplication Mode

Use both extruders in synchronized printing, doubling production capabilities.

Auto Bed Leveling

Confirms that the printing platform is level whenever preparing to print. ABL maintains the distance between the print nozzles and bed, creating a uniform build area.
Improves bed adhesion and print quality by allowing the extruder to adjust to even minor surface contour changes.





Industry First Video-Assisted Offset Calibration System

Guides users through a simple, video-assisted process for verifying that the E2 is geometrically aligned.

After completing the Offset Calibration Guide, the E2 can be used worry-free, with properly aligned extruders.





Large Build Volume

Up to

13×9.4×9.4 inch | 330×240×240 mm

  • Large build volume for bigger prints
  • More options for designs



Safety Features

Opening a door is detected automatically, immediately pausing the print and keeping users safe.

Power Saving Button

Turn off the RaiseTouch and LED lights to save energy and print throughout the night.



An IDEX Printer with a Flexible Build Plate

Easily remove prints from the flexible build plate while minimizing potential print damage to quickly return to printing.





Compatible with a Variety of Filaments up to 300℃

PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill







Raise3D E2 Technical Specifications PDF Download

GENERAL

Build Volume (W×D×H)
Single Extruder Print:
13×9.4×9.4 inch / 330×240×240 mm

Dual Extruder Print:
11.6×9.4×9.4 inch / 295×240×240 mm

Machine Size (W×D×H)
23.9×23.5×18.3 inch / 607×596×465 mm

Print Technology
FFF

Print Head System
Independent Dual Extruders

Filament Diameter
1.75 mm

XYZ Step Size
0.78125, 0.78125, 0.078125 micron

Print Head Travel Speed
30 – 150 mm/s

Build Plate
Flexible Steel Plate with Buildtak

Max Build Plate Temperature
110 ℃

Heated Bed Material
Silicone

Build Plate Leveling
Mesh-leveling with Flatness Detection

Supported Materials
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

Layer Height
0.02 - 0.25 mm

Nozzle Diameter
0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)

Hot End
V3P (V3 hotend with PTFE version)

Max Nozzle Temperature
300 ºC

Connectivity
Wi-Fi, LAN, USB port, Live camera

Noise Emission (Acoustic)
<50 dB(A) when building

Operating Ambient Temperature
15-30 ºC, 10-90% RH non-condensing

Storage Temperature
-25 to 55℃, 10-90% RH non-condensing

Technical Certifications
CB, CE, FCC, RoHS, RCM

Filter
HEPA filter with activated charcoal

Electrical
Power Supply Input
100-240 V AC, 50/60 Hz 230 V @2 A

Power Supply Output
24 V DC, 350 W

Software
Slicing Software
ideaMaker

Supported File Types
STL/ OBJ/ 3MF

Supported OS
Windows/ macOS/ Linux

Machine Code Type
GCODE

Printer Controller
User Interface
7-inch Touch Screen

Network
Wi-Fi, Ethernet

Resume Print after Power Outage
Firmware recording, no need for battery installation.

Screen Resolution
1024×600

Motion Controller
Atmel ARM Cortex-M4 120MHz FPU

Logic Controller
NXP ARM Cortex-A9 Quad 1 GHz

Memory
1GB

Onboard Flash
8GB

OS
Embedded Linux

Ports
USB 2.0×2, Ethernet×1

Raise3D E2

Precise, Reliable and Affordable

An easy-to-use, durable desktop 3D printer ready to improve precision standards, scale production, and add a powerful new manufacturing resource.

IDEX (Independent Dual Extruders) - Multiple Prints Simultaneously


Mirror Mode
Produce 3D models and their inverse simultaneously, increasing productivity and reducing print time.


Duplication Mode
Use both extruders in synchronized printing, doubling production capabilities.


Auto Bed Leveling
Confirms that the printing platform is level whenever preparing to print. ABL maintains the distance between the print nozzles and bed, creating a uniform build area.  Improves bed adhesion and print quality by allowing the extruder to adjust to even minor surface contour changes.


Industry First Video-Assisted Offset Calibration System
Spend less time calibrating and more time printing.


Large Build Volume
Up to 13×9.4×9.4 inch | 330×240×240 mm
 Large build volume for bigger prints
 More options for designs


Safety Features
Opening a door is detected automatically, immediately pausing the print and keeping users safe.


Power Saving Button
Turn off the RaiseTouch and LED lights to save energy and print throughout the night.


Flexible Build Plate
Easily remove prints from the flexible build plate while minimizing potential print damage to quickly return to printing.


Seamless Workflow, Ultimate Connectivity
NXP ARM Cortex-A9 Quad 1GHz


Compatible with a Variety of Filaments up to 300℃
PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

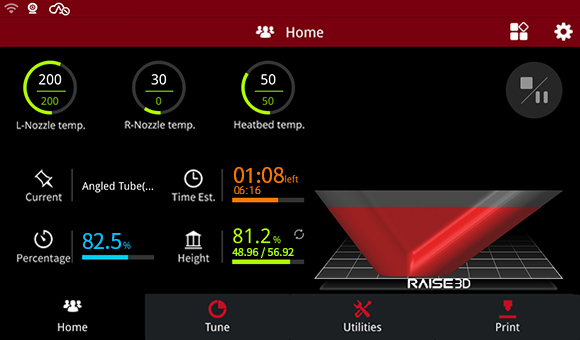

Intuitive User Experience
Visual Interface / Rapid Reviewing / Visual Print Progress / Full Adjustment Control
 7-inch touch screen
 Integrated setting control
 On screen assistance
 Visual model selection


Never Lose a Print
Power Loss Recovery
No longer will sudden lapses in power ruin a print. Power loss recovery allows users to print worry-free.
 Automatically stores task progress prior to power failure.
 Seamlessly resumes the most recent task after power is restored.


Filament Run-out Sensors
Dependable and accurate optical run-out sensors automatically pause the print when the printer is out of filament.
 When filament runs out, a red light flashes and the print is paused. Then, users simply add filament
and press resume.
 All types of filaments can be detected, regardless of color, material, or hardness.

HEPA Air Filtration
Environmentally friendly.
Designed to silently remove nano-particles.
